Basic usage of scembed#
scembed is meant to facilitate running distributed comaprisons of data integration approaches for single-cell and spatial data. As such, it’s most powerful when combined with some library that takes care of scheduling jobs and tracking results, like slurm-sweep, which uses weights and biases in the backend. Thus, the best way to see scembed in action is to take a look at the examples which are part of slurm-sweep package.
Here, we’ll just demonstrate the basic usage of a method wrapper combined with the evaluation class - it’s much less exciting when run like this!
Preliminaries#
%load_ext autoreload
%autoreload 2
The autoreload extension is already loaded. To reload it, use:
%reload_ext autoreload
import scembed
import scanpy as sc
from scib_metrics.benchmark import BatchCorrection, BioConservation, Benchmarker
sc.set_figure_params(scanpy=True, frameon=False, fontsize=14)
Let’s get some example data here.
adata = sc.read("data/lung_atlas.h5ad", backup_url="https://figshare.com/ndownloader/files/24539942")
adata
AnnData object with n_obs × n_vars = 32472 × 15148
obs: 'dataset', 'location', 'nGene', 'nUMI', 'patientGroup', 'percent.mito', 'protocol', 'sanger_type', 'size_factors', 'sampling_method', 'batch', 'cell_type', 'donor'
layers: 'counts'
Let’s do simple processing
sc.pp.highly_variable_genes(adata, n_top_genes=2000, flavor="cell_ranger", batch_key="batch")
sc.tl.pca(adata, n_comps=30, mask_var="highly_variable")
Let’s define a few global parameter here.
MODEL_PARAMS = {
"batch_key": "batch",
"cell_type_key": "cell_type",
"pca_key": "X_pca",
"unlabeled_category": "unknown",
}
Apply integration approaches#
We define a dict of methods here - not that we’re using very few epochs for deep learing based methods here to speed things up. In reality, you should use more epochs.
method_dict = {
"harmony": scembed.methods.HarmonyMethod(adata, output_dir="results/harmony", **MODEL_PARAMS),
"liger": scembed.methods.LIGERMethod(adata, output_dir="results/liger", **MODEL_PARAMS),
"scanorama": scembed.methods.ScanoramaMethod(adata, output_dir="results/scanorama", **MODEL_PARAMS),
"scvi": scembed.methods.scVIMethod(
adata, n_layers=2, n_latent=30, max_epochs=20, output_dir="results/scvi", **MODEL_PARAMS
),
"scanvi": scembed.methods.scANVIMethod(
adata,
n_samples_per_label=100,
max_epochs=10,
scvi_params={"max_epochs": 20},
output_dir="results/scanvi",
**MODEL_PARAMS,
),
"scpoli": scembed.methods.scPoliMethod(
adata, n_epochs=10, pretraining_epochs=9, output_dir="results/scpoli", **MODEL_PARAMS
),
"hvg": scembed.methods.HVGMethod(adata, output_dir="results/hvg", **MODEL_PARAMS),
"pca": scembed.methods.PrecomputedEmbeddingMethod(
adata, embedding_key="X_pca", output_dir="results/pca", **MODEL_PARAMS
),
}
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for Harmony method.
INFO Initialized Harmony method, saving outputs to 'results/harmony'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for LIGER method.
INFO Initialized LIGER method, saving outputs to 'results/liger'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for Scanorama method.
INFO Initialized Scanorama method, saving outputs to 'results/scanorama'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for scVI method.
INFO Initialized scVI method, saving outputs to 'results/scvi'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for scANVI method.
INFO Initialized scANVI method, saving outputs to 'results/scanvi'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for scPoli method.
INFO Initialized scPoli method, saving outputs to 'results/scpoli'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for HVG method.
INFO Initialized HVG method, saving outputs to 'results/hvg'.
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for PrecomputedEmbedding method.
INFO Initialized PrecomputedEmbedding method, saving outputs to 'results/pca'.
Use each method to compute a joint latent space.
for key, method in method_dict.items():
print(f"Working on {key}")
method.fit()
method.transform()
Working on harmony
Initialization is completed.
Completed 1 / 10 iteration(s).
Completed 2 / 10 iteration(s).
Completed 3 / 10 iteration(s).
Completed 4 / 10 iteration(s).
Completed 5 / 10 iteration(s).
Completed 6 / 10 iteration(s).
Completed 7 / 10 iteration(s).
Completed 8 / 10 iteration(s).
Completed 9 / 10 iteration(s).
Completed 10 / 10 iteration(s).
Working on liger
Working on scanorama
Found 2000 genes among all datasets
[[0. 0.53 0.25 0.17 0.47 0.17 0.02 0.06 0.01 0.01 0.01 0.01 0. 0.01
0.02 0. ]
[0. 0. 0.66 0.26 0.34 0.41 0.04 0.04 0. 0.02 0.02 0.01 0.01 0.02
0.02 0. ]
[0. 0. 0. 0.35 0.79 0.61 0.02 0.03 0.03 0.02 0.03 0.01 0.01 0.
0. 0. ]
[0. 0. 0. 0. 0.27 0.31 0.02 0.01 0. 0.01 0.04 0.01 0. 0.
0. 0. ]
[0. 0. 0. 0. 0. 0.52 0.07 0.02 0.01 0.01 0.03 0.01 0.03 0.02
0.01 0. ]
[0. 0. 0. 0. 0. 0. 0.03 0.02 0.01 0.02 0.06 0.02 0.09 0.
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0.79 0.65 0.56 0.21 0.57 0. 0.
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0.7 0.79 0.13 0.47 0. 0.
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0.54 0.04 0.53 0. 0.
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.13 0.6 0. 0.
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.23 0.01 0.01
0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.05 0.05
0.03 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.76
0.23 0.22]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
0.61 0.13]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
0. 0.41]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
0. 0. ]]
Processing datasets (6, 7)
Processing datasets (2, 4)
Processing datasets (7, 9)
Processing datasets (12, 13)
Processing datasets (7, 8)
Processing datasets (1, 2)
Processing datasets (6, 8)
Processing datasets (13, 14)
Processing datasets (2, 5)
Processing datasets (9, 11)
Processing datasets (6, 11)
Processing datasets (6, 9)
Processing datasets (8, 9)
Processing datasets (8, 11)
Processing datasets (0, 1)
Processing datasets (4, 5)
Processing datasets (0, 4)
Processing datasets (7, 11)
Processing datasets (1, 5)
Processing datasets (14, 15)
Processing datasets (2, 3)
Processing datasets (1, 4)
Processing datasets (3, 5)
Processing datasets (3, 4)
Processing datasets (1, 3)
Processing datasets (0, 2)
Processing datasets (10, 11)
Processing datasets (12, 14)
Processing datasets (12, 15)
Processing datasets (6, 10)
Processing datasets (0, 5)
Processing datasets (0, 3)
Processing datasets (13, 15)
Processing datasets (9, 10)
Processing datasets (7, 10)
Working on scvi
INFO Set up scVI model:
Epoch 1/20: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 2/20: 5%|▌ | 1/20 [00:02<00:39, 2.09s/it, v_num=1, train_loss_step=547, train_loss_epoch=661]
Epoch 3/20: 10%|█ | 2/20 [00:04<00:37, 2.09s/it, v_num=1, train_loss_step=608, train_loss_epoch=593]
Epoch 4/20: 15%|█▌ | 3/20 [00:06<00:35, 2.08s/it, v_num=1, train_loss_step=623, train_loss_epoch=578]
Epoch 5/20: 20%|██ | 4/20 [00:08<00:33, 2.09s/it, v_num=1, train_loss_step=552, train_loss_epoch=568]
Epoch 6/20: 25%|██▌ | 5/20 [00:10<00:31, 2.09s/it, v_num=1, train_loss_step=504, train_loss_epoch=561]
Epoch 7/20: 30%|███ | 6/20 [00:12<00:29, 2.09s/it, v_num=1, train_loss_step=528, train_loss_epoch=555]
Epoch 8/20: 35%|███▌ | 7/20 [00:14<00:27, 2.10s/it, v_num=1, train_loss_step=543, train_loss_epoch=550]
Epoch 9/20: 40%|████ | 8/20 [00:16<00:25, 2.10s/it, v_num=1, train_loss_step=578, train_loss_epoch=546]
Epoch 10/20: 45%|████▌ | 9/20 [00:18<00:23, 2.10s/it, v_num=1, train_loss_step=519, train_loss_epoch=542]
Epoch 11/20: 50%|█████ | 10/20 [00:20<00:20, 2.09s/it, v_num=1, train_loss_step=495, train_loss_epoch=539]
Epoch 12/20: 55%|█████▌ | 11/20 [00:22<00:18, 2.08s/it, v_num=1, train_loss_step=560, train_loss_epoch=537]
Epoch 13/20: 60%|██████ | 12/20 [00:25<00:16, 2.08s/it, v_num=1, train_loss_step=517, train_loss_epoch=534]
Epoch 14/20: 65%|██████▌ | 13/20 [00:27<00:14, 2.09s/it, v_num=1, train_loss_step=479, train_loss_epoch=532]
Epoch 15/20: 70%|███████ | 14/20 [00:29<00:12, 2.09s/it, v_num=1, train_loss_step=549, train_loss_epoch=530]
Epoch 16/20: 75%|███████▌ | 15/20 [00:31<00:10, 2.08s/it, v_num=1, train_loss_step=545, train_loss_epoch=528]
Epoch 17/20: 80%|████████ | 16/20 [00:33<00:08, 2.09s/it, v_num=1, train_loss_step=471, train_loss_epoch=527]
Epoch 18/20: 85%|████████▌ | 17/20 [00:35<00:06, 2.09s/it, v_num=1, train_loss_step=498, train_loss_epoch=526]
Epoch 19/20: 90%|█████████ | 18/20 [00:37<00:04, 2.08s/it, v_num=1, train_loss_step=571, train_loss_epoch=524]
Epoch 20/20: 95%|█████████▌| 19/20 [00:39<00:02, 2.09s/it, v_num=1, train_loss_step=545, train_loss_epoch=523]
Epoch 20/20: 100%|██████████| 20/20 [00:41<00:00, 2.09s/it, v_num=1, train_loss_step=537, train_loss_epoch=522]
Epoch 20/20: 100%|██████████| 20/20 [00:41<00:00, 2.09s/it, v_num=1, train_loss_step=537, train_loss_epoch=522]
Working on scanvi
INFO Training scVI model for scANVI pretraining
WARNING Unlabeled category 'unknown' not found in cell type key 'cell_type'
WARNING Counts layer 'counts' contains non-integer values
INFO Data validation passed for scVI method.
INFO Initialized scVI method, saving outputs to '/scratch/tmp.41108588.mlange/tmp31gwmcxi'.
INFO Set up scVI model:
Epoch 1/20: 0%| | 0/20 [00:00<?, ?it/s]
Epoch 2/20: 5%|▌ | 1/20 [00:01<00:35, 1.88s/it, v_num=1, train_loss_step=577, train_loss_epoch=660]
Epoch 3/20: 10%|█ | 2/20 [00:03<00:33, 1.86s/it, v_num=1, train_loss_step=588, train_loss_epoch=593]
Epoch 4/20: 15%|█▌ | 3/20 [00:05<00:31, 1.85s/it, v_num=1, train_loss_step=608, train_loss_epoch=578]
Epoch 5/20: 20%|██ | 4/20 [00:07<00:29, 1.85s/it, v_num=1, train_loss_step=552, train_loss_epoch=568]
Epoch 6/20: 25%|██▌ | 5/20 [00:09<00:27, 1.87s/it, v_num=1, train_loss_step=583, train_loss_epoch=561]
Epoch 7/20: 30%|███ | 6/20 [00:11<00:26, 1.87s/it, v_num=1, train_loss_step=543, train_loss_epoch=556]
Epoch 8/20: 35%|███▌ | 7/20 [00:13<00:24, 1.90s/it, v_num=1, train_loss_step=531, train_loss_epoch=551]
Epoch 9/20: 40%|████ | 8/20 [00:15<00:22, 1.88s/it, v_num=1, train_loss_step=544, train_loss_epoch=547]
Epoch 10/20: 45%|████▌ | 9/20 [00:16<00:20, 1.88s/it, v_num=1, train_loss_step=473, train_loss_epoch=544]
Epoch 11/20: 50%|█████ | 10/20 [00:18<00:18, 1.89s/it, v_num=1, train_loss_step=515, train_loss_epoch=541]
Epoch 12/20: 55%|█████▌ | 11/20 [00:20<00:17, 1.89s/it, v_num=1, train_loss_step=519, train_loss_epoch=538]
Epoch 13/20: 60%|██████ | 12/20 [00:22<00:15, 1.89s/it, v_num=1, train_loss_step=550, train_loss_epoch=536]
Epoch 14/20: 65%|██████▌ | 13/20 [00:24<00:13, 1.87s/it, v_num=1, train_loss_step=560, train_loss_epoch=534]
Epoch 15/20: 70%|███████ | 14/20 [00:26<00:11, 1.87s/it, v_num=1, train_loss_step=522, train_loss_epoch=532]
Epoch 16/20: 75%|███████▌ | 15/20 [00:28<00:09, 1.86s/it, v_num=1, train_loss_step=509, train_loss_epoch=531]
Epoch 17/20: 80%|████████ | 16/20 [00:29<00:07, 1.87s/it, v_num=1, train_loss_step=633, train_loss_epoch=529]
Epoch 18/20: 85%|████████▌ | 17/20 [00:31<00:05, 1.85s/it, v_num=1, train_loss_step=506, train_loss_epoch=528]
Epoch 19/20: 90%|█████████ | 18/20 [00:33<00:03, 1.85s/it, v_num=1, train_loss_step=560, train_loss_epoch=527]
Epoch 20/20: 95%|█████████▌| 19/20 [00:35<00:01, 1.85s/it, v_num=1, train_loss_step=549, train_loss_epoch=526]
Epoch 20/20: 100%|██████████| 20/20 [00:37<00:00, 1.87s/it, v_num=1, train_loss_step=549, train_loss_epoch=525]
Epoch 20/20: 100%|██████████| 20/20 [00:37<00:00, 1.87s/it, v_num=1, train_loss_step=549, train_loss_epoch=525]
INFO Creating scANVI from pretrained scVI model
INFO Set up scANVI model:
INFO Training scANVI model
INFO Training for 10 epochs.
Epoch 1/10: 0%| | 0/10 [00:00<?, ?it/s]
Epoch 2/10: 10%|█ | 1/10 [00:03<00:35, 3.98s/it, v_num=1, train_loss_step=522, train_loss_epoch=566]
Epoch 3/10: 20%|██ | 2/10 [00:07<00:31, 3.89s/it, v_num=1, train_loss_step=528, train_loss_epoch=530]
Epoch 4/10: 30%|███ | 3/10 [00:11<00:26, 3.86s/it, v_num=1, train_loss_step=513, train_loss_epoch=526]
Epoch 5/10: 40%|████ | 4/10 [00:15<00:23, 3.85s/it, v_num=1, train_loss_step=479, train_loss_epoch=524]
Epoch 6/10: 50%|█████ | 5/10 [00:19<00:19, 3.85s/it, v_num=1, train_loss_step=535, train_loss_epoch=523]
Epoch 7/10: 60%|██████ | 6/10 [00:23<00:15, 3.84s/it, v_num=1, train_loss_step=586, train_loss_epoch=522]
Epoch 8/10: 70%|███████ | 7/10 [00:26<00:11, 3.83s/it, v_num=1, train_loss_step=539, train_loss_epoch=521]
Epoch 9/10: 80%|████████ | 8/10 [00:30<00:07, 3.83s/it, v_num=1, train_loss_step=485, train_loss_epoch=520]
Epoch 10/10: 90%|█████████ | 9/10 [00:34<00:03, 3.83s/it, v_num=1, train_loss_step=564, train_loss_epoch=520]
Epoch 10/10: 100%|██████████| 10/10 [00:38<00:00, 3.81s/it, v_num=1, train_loss_step=503, train_loss_epoch=519]
Epoch 10/10: 100%|██████████| 10/10 [00:38<00:00, 3.84s/it, v_num=1, train_loss_step=503, train_loss_epoch=519]
Working on scpoli
Embedding dictionary:
Num conditions: [16]
Embedding dim: [10]
Encoder Architecture:
Input Layer in, out and cond: 2000 45 10
Mean/Var Layer in/out: 45 10
Decoder Architecture:
First Layer in, out and cond: 10 45 10
Output Layer in/out: 45 2000
Initializing dataloaders
Starting training
|██████████████████--| 90.0% - val_loss: 577.27 - val_cvae_loss: 577.27
Initializing unlabeled prototypes with Leiden with an unknown number of clusters.
Epoch 68/246: 27%|██▋ | 67/246 [11:33<30:52, 10.35s/it, v_num=1, train_loss_step=469, train_loss_epoch=513]
Clustering succesful. Found 29 clusters.
|████████████████████| 100.0% - val_loss: 585.27 - val_cvae_loss: 576.13 - val_prototype_loss: 9.14 - val_unlabeled_loss: 0.81 - val_labeled_loss: 9.14
Working on hvg
INFO This selected 1586 highly variable genes.
Working on pca
SCVI model with the following parameters: n_hidden: 128, n_latent: 30, n_layers: 2, dropout_rate: 0.1, dispersion: gene, gene_likelihood: zinb, latent_distribution: normal. Training status: Not Trained Model's adata is minified?: False
SCVI model with the following parameters: n_hidden: 128, n_latent: 10, n_layers: 1, dropout_rate: 0.1, dispersion: gene, gene_likelihood: zinb, latent_distribution: normal. Training status: Not Trained Model's adata is minified?: False
ScanVI Model with the following params: unlabeled_category: unknown, n_hidden: 128, n_latent: 10, n_layers: 1, dropout_rate: 0.1, dispersion: gene, gene_likelihood: zinb Training status: Not Trained Model's adata is minified?: False
Evaluate integration approaches#
scembed is designed to evaluate integration approaches one by one, as in a typical distributed setup where each job fits a single method, evaluates intefration performance, and logs the results somewhere. This is of course a bit inconvenien here, we we would ideally like to show all methods jointly. In toy scenarios like this one, where we run all method together in one notebook, it’s much easier to use scIB metrics directly based on a single AnnData object that contains all embeddings in .obsm.
Thus, we’ll simply aggregate all data into one AnnData object and use scIB directly here.
embedding_keys = []
for key, method in method_dict.items():
adata.obsm[f"X_{key}"] = method.adata.obsm[method.embedding_key].copy()
embedding_keys.append(method.embedding_key)
bm = Benchmarker(
adata,
batch_key=MODEL_PARAMS["batch_key"],
label_key=MODEL_PARAMS["cell_type_key"],
bio_conservation_metrics=BioConservation(),
batch_correction_metrics=BatchCorrection(),
embedding_obsm_keys=embedding_keys,
pre_integrated_embedding_obsm_key=MODEL_PARAMS["pca_key"],
n_jobs=6,
)
bm.benchmark()

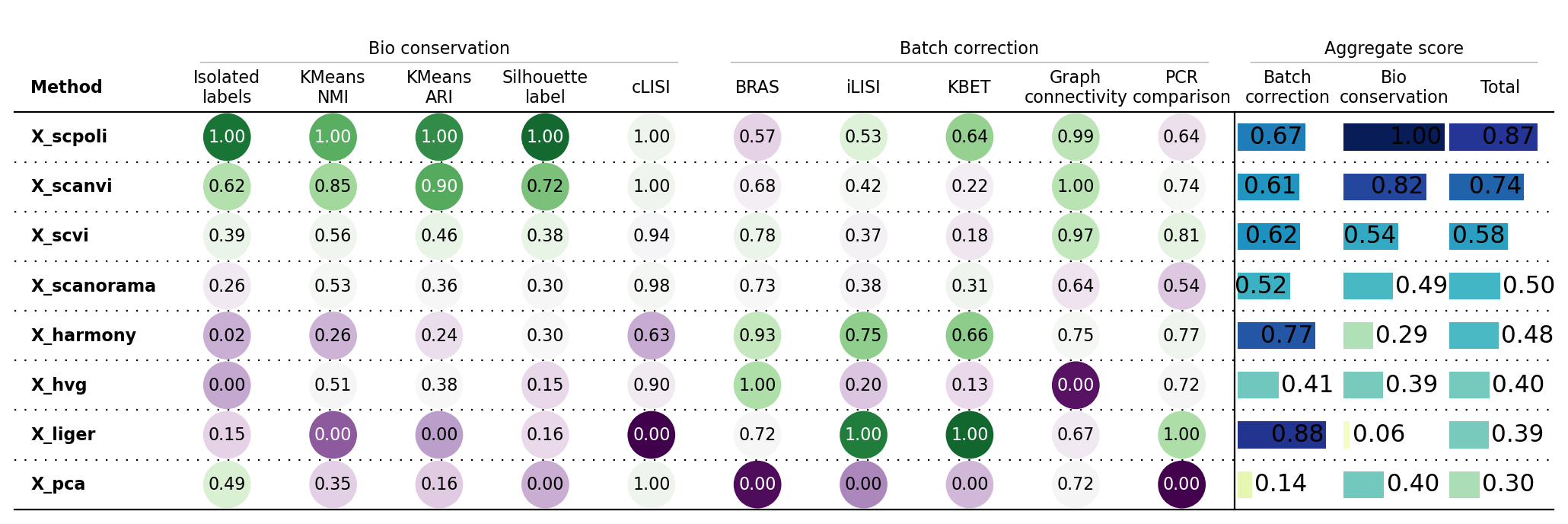

Let’s take a look at what we got.
bm.plot_results_table(min_max_scale=True)
<plottable.table.Table at 0x1486d8409c70>
Again, to make use of the real power of scembed, you need to run this in a distributed fashion, take a look at the slurm-sweep package.
